Case Study

State Highway 16 Causeway Project

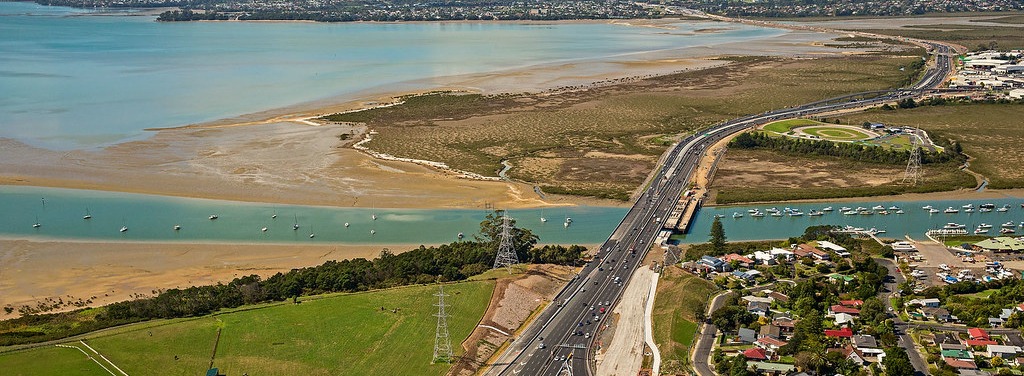

The eight-span Whau River Bridge, at the western end of the causeway, and the five-span Causeway Bridge, further east, are strategically significant to the city of Auckland. The bridges traverse an environmentally sensitive coastal marine reserve and carry on average 90,000 vehicles per day. The original structures were built in the 1950s and 1960s.

Location

Auckland, New Zealand

Client

NZ Transport Agency and Causeway Alliance

Completed

2017

Structure

Bridges

Highway 16 Causeway Project - icon problem

The Problem Identified

Extensive assessment identified that the bridge piles were exhibiting differing levels of deterioration ranging from cracking and delamination to spalling and section loss. Cover to the reinforcement and chloride content varied significantly depending on pile type and age of construction.

Overall, the results of the investigations indicated that the observed deterioration was due to chloride induced corrosion.

Highway 16 Causeway Project - icon solution

The Solution Developed

A DuoGuard™ hybrid anode system was proposed to halt ongoing corrosion and prevent further damage to the contaminated bridge piles. Each bridge pile was zoned according to its environmental exposure to create 3 distinct zones: tidal, splash and atmospheric.

DuoGuard™ anodes were installed into drilled holes in the concrete and connected in series using titanium wire recessed into saw cuts. Using an external power source, an impressed current was applied to stop active corrosion and render the steel passive. The anodes were then disconnected from the power source and left in place to self-generate a galvanic current, sufficient to maintain steel passivity and control corrosion.

A bespoke monitoring system was included in the design to allow the performance of the corrosion control system to be checked and supervised.

Highway 16 Causeway Project - icon benefits

The Benefits Provided

Corrosion related deterioration of the Whau and Causeway Bridges has been halted. Following the application of a brief current electrochemical treatment, corrosion rates have remained at low levels. After the initial power up period, using an external power source, the DuoGuard system is self-powered thus minimising future maintenance requirements and associated life costs.

The Highway 16 Causeway Project contract required a 50 year service life extension. The cost of completely replacing the existing bridges, which had not yet reached the end of their service life, would have been substantially more expensive and replacement would have also caused significant disruption in an environmentally sensitive coastal marine reserve.

DuoGuard™ hybrid anodes provide long-term corrosion protection of reinforced concrete elements and are a practical alternative to traditional electrochemical treatments. The anodes are well suited to installation in areas of constrained access such as marine structures, subject to the cyclic variation of tides, and offer a substantially reduced residual risk against hydrogen embrittlement for the protection of prestressed concrete elements.

Highway 16 Causeway Project - Highway 16 Causeway Bridge 2
Highway 16 Whau River Bridge
Highway 16 Causeway Project - Highway 16 pier1
The structural problem identified
Highway 16 Causeway Project - Highway 16 Installation 3
DuoGuard installation prior to infilling holes and saw cuts
